The Complete Guide to OCTG Couplings: Types, Grades & Connections

An OCTG coupling is the short, internally threaded steel sleeve that joins two lengths of casing or tubing into one continuous string, machined to the same API 5CT grade as the pipe body it connects. Couplings carry the string under tension, pressure and, in many wells, corrosive gas, yet the coupling itself is a distinct product with its own manufacturing route, grade rules and failure modes.

What Is an OCTG Coupling?

An OCTG coupling connects two joints of casing or tubing into a single string, carrying the same grade and pressure duty as the pipe body on either side of it. It’s manufactured from weld-free, grain-refined coupling stock, machined separately from the pipe, then heat-treated and threaded to match. API 5CT controls it as a distinct product, not a generic pipe fitting, because the connection is statistically the most likely failure point in the string.

Terminology varies depending on who’s asking: some buyers search for octg tubing and casing couplings as one category, others ask specifically about tubing and casing couplings, and some just say oil casing coupling when only the casing string is in scope. Whichever term ends up on the purchase order, the same API 5CT logic governs it, grade and connection family have to match the pipe body, not just the nominal diameter.

~90% of casing failures, per an often-cited industry figure, occur at threaded connections, not the pipe body. Whatever the precise number in a given field, the direction is not in dispute across the oil and gas industry: coupling selection deserves the same scrutiny as pipe body grade, not an afterthought once the pipe order is placed.

Synbase’s full OCTG product range covers casing, tubing, drill pipe and couplings under this same standard, which is the frame the rest of this guide works from.

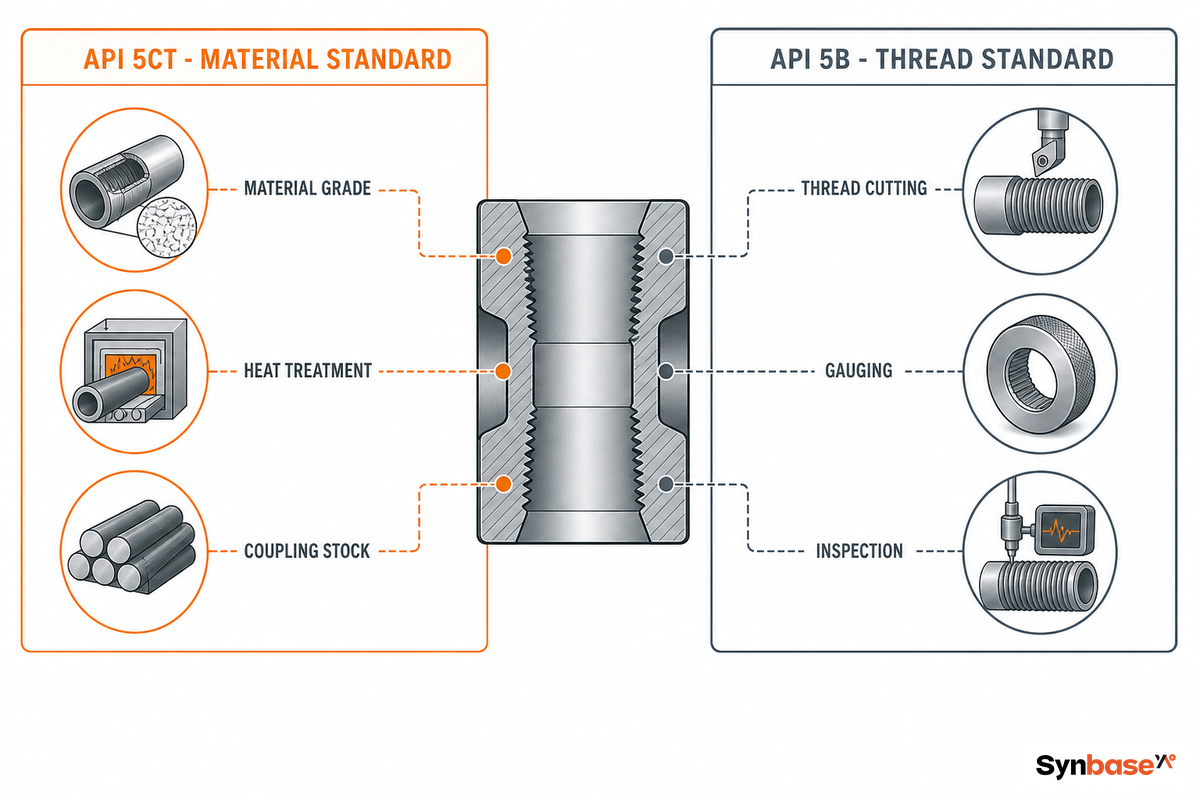

API 5CT and API 5B, The Two Standards Behind Every Coupling

Every compliant coupling answers to two separate API specifications, and buyers who only check one are checking half the paperwork. API 5CT governs what the coupling is made of and how strong it has to be; API 5B governs how the thread that let it screw onto the pipe is cut, gauged and inspected. A mill test report referencing only one of the two hasn’t actually confirmed the connection is sound.

Buyers can confirm a mill’s current license status directly through API’s own Monogram and APIQR program directory, which is a more reliable check than trusting a logo on a mill test report. The two API 5CT casing product families most buyers deal with are the API 5CT casing line and the API 5CT tubing line, and couplings for both come off the same weld-free stock requirement.

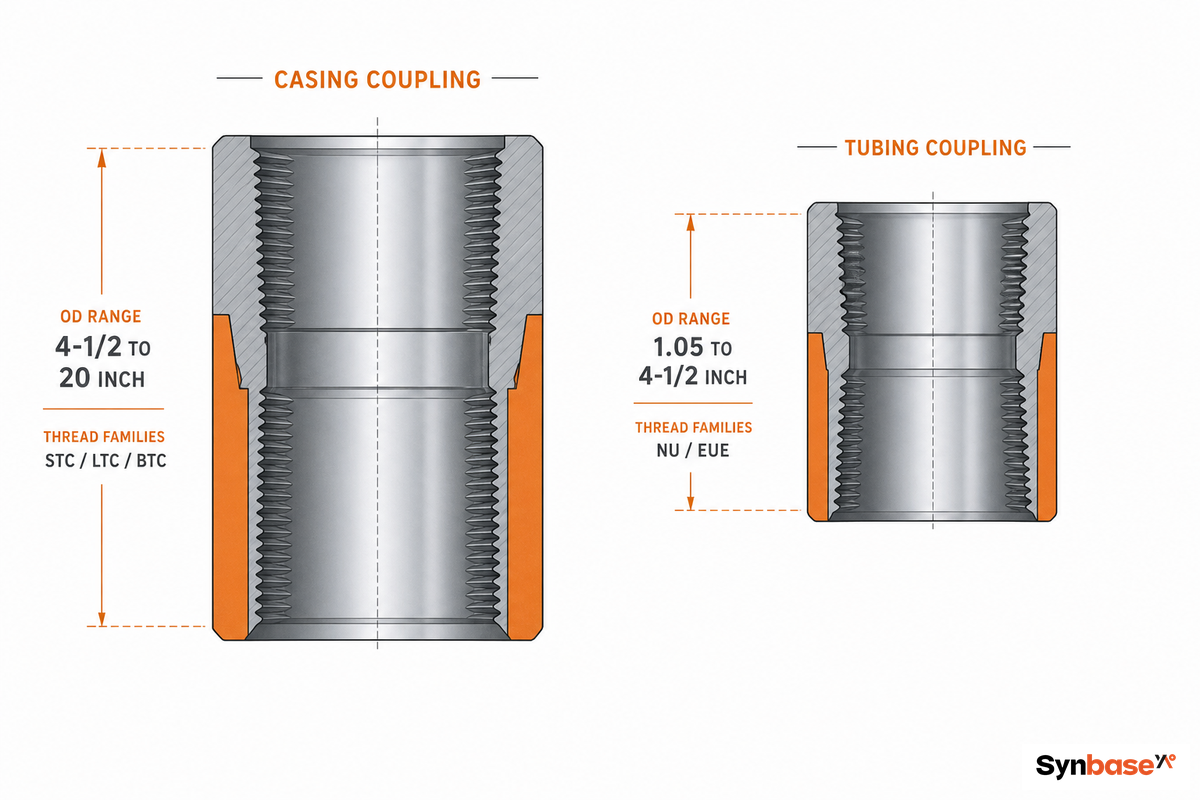

Casing Coupling vs Tubing Coupling, What Actually Differs

Casing couplings and tubing couplings do the same basic job, joining two lengths of pipe, but they’re sized, threaded and rated differently enough that swapping one family for the other is a real procurement mistake, not a cosmetic one. The core function of casing couplings and tubing couplings used in oil and gas strings is the same at a glance, which is exactly why choosing couplings by family instead of by outer diameter alone is the mistake this section exists to prevent. Field hands on an oil well sometimes just say “pipe coupling” regardless of whether the string in question is casing and tubing couplings together or one or the other, precision matters here, since whether a given interval call for tubing or casing hardware changes the coupling family, not just the size.

The mismatch risk isn’t hypothetical. Industry guidance is blunt about it: an incorrect or mismatched coupling grade or thread family for the pipe body leads to leaks and equipment failures downhole, where a fix means pulling the string. A P110 casing coupling is never substituted for an N80 tubing coupling just because a diameter happens to be close, grade and connection family both have to match the pipe program, not just the nominal size on the packing slip. A US Customs and Border Protection classification ruling on API 5CT casing independently confirms the standard’s outside-diameter and wall-thickness scope, a useful non-vendor cross-check when a distributor’s stated range doesn’t match the mill’s own spec sheet.

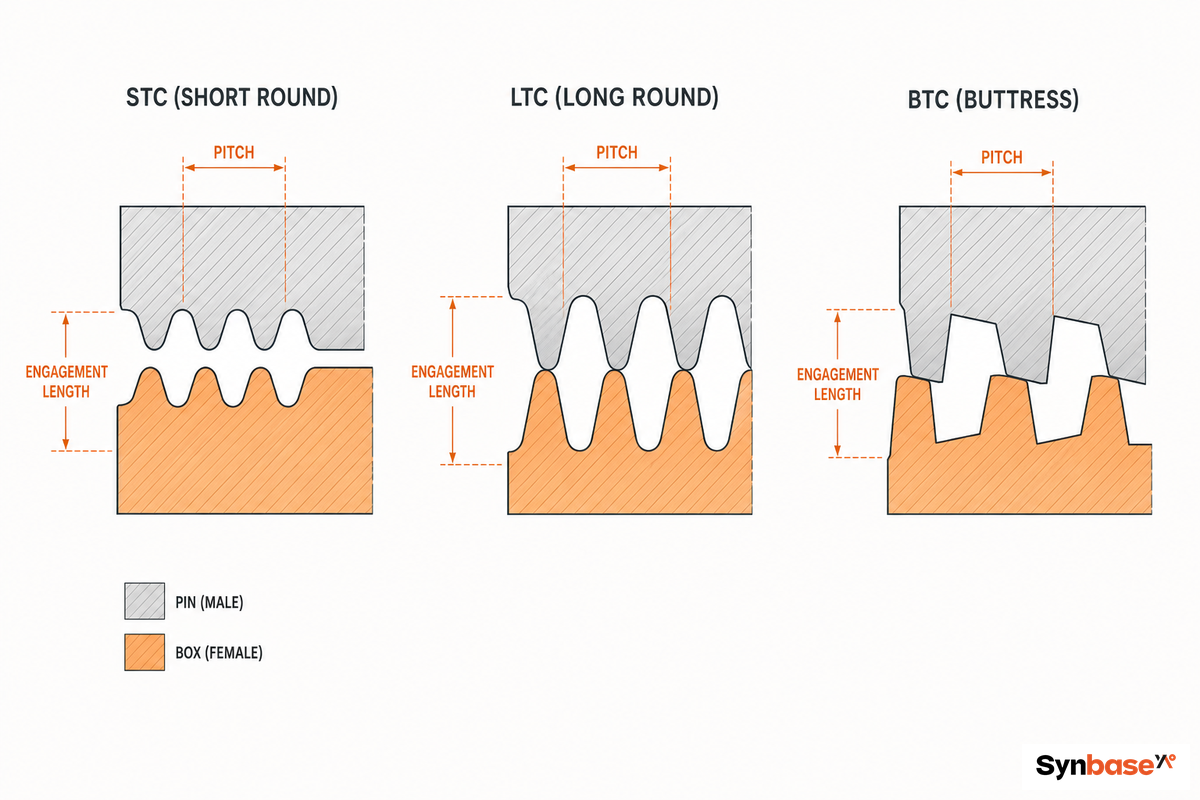

OCTG Coupling Types & Connection Threads, STC, LTC, BTC & Special Designs

Some buyers search for external-upset tubing as “EU tubing,” though EUE (external-upset, external-upset) is the correct API 5CT designation, the coupling accommodates the thickened tubing end that upsetting create, which is why the coupling doesn’t have to do all the strength work alone at the joint. Within the regular-coupling family, the three standard API round and buttress threads carry different load capacity and cost profiles; the two round-thread form (STC and LTC) use a pitch flat thread crest rather than a sharp V-profile, specifically to reduce stress concentration at the root during make-up.

Every one of these threads is cut and gauged under API 5B (see the previous section), and none of the three, including buttress, is inherently gas-tight; that distinction matter enough to get its own section below. Granted OCTG connection patents such as US 8,882,157 (Connecting oil country tubular goods) illustrate why so much engineering effort goes into thread-profile geometry alone, small changes at this scale materially change how a connection carries load.

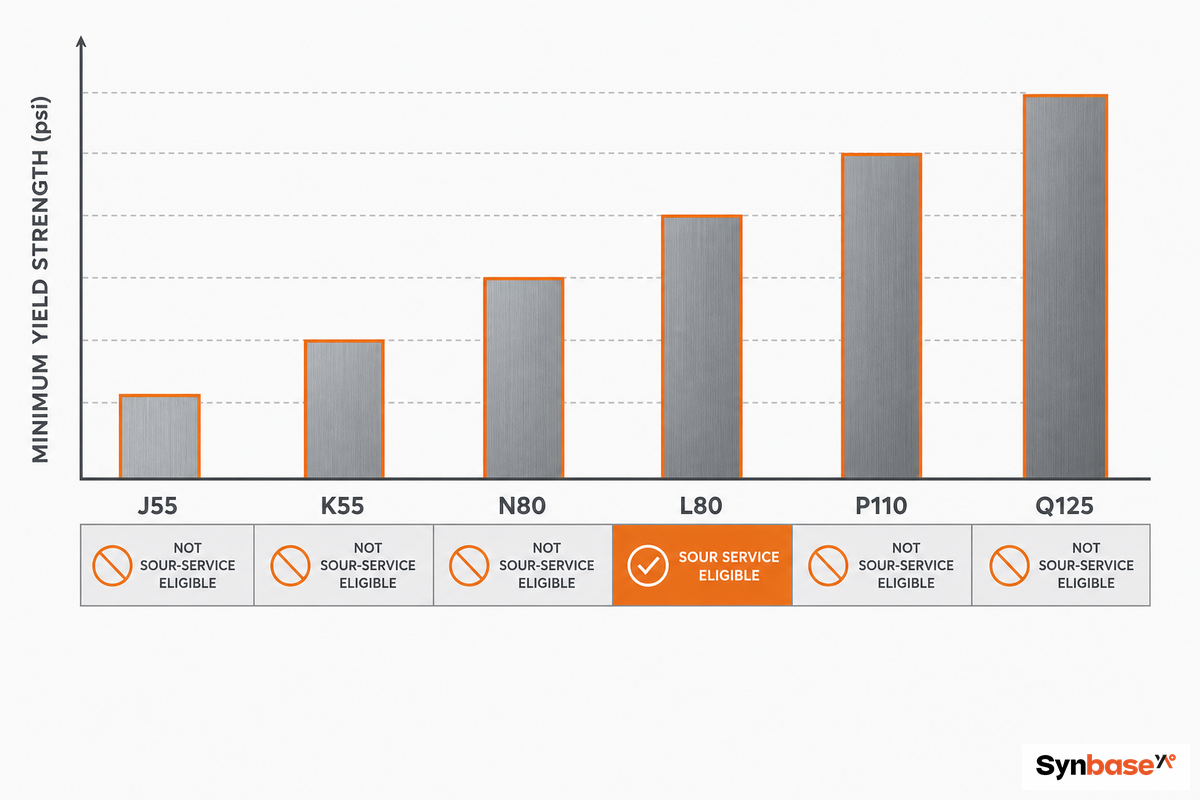

The Coupling Grade Window, J55 to Q125 Explained

API 5CT grade isn’t one number. Minimum yield, minimum tensile, heat-treatment route and intended service all move together, which is why the same nominal “80 ksi” class splits into three distinct grades, N80-1, N80Q and L80, that aren’t interchangeable on a purchase order. Getting the material grade right against full API 5CT specifications, not an abbreviated coupling specifications sheet, matters most at exactly this edge case: N80 Type 1 and N80Q share a nominal 80,000-psi yield, but only N80Q is quenched and tempered, and a buyer with special requirements outside the standard grade table should confirm those details before the order is cut, not after.

Procurement teams sometimes treat J55 and K55 as interchangeable because they share the same 379 MPa minimum yield, but K55 carries roughly 140 MPa higher minimum tensile strength and mandatory normalizing, which is a real mechanical difference, not paperwork. And P110 (758 MPa yield) and Q125 (862 MPa yield) both lose sour-service eligibility as yield climbs, so neither grade belongs on a well with H₂S present regardless of how attractive the strength numbers look on a spec sheet. The US Bureau of Safety and Environmental Enforcement’s own casing string design methodology documents why these grade steps matter mechanically and not just on a spec sheet, joint strength calculations move directly off the minimum yield and tensile values in this table.

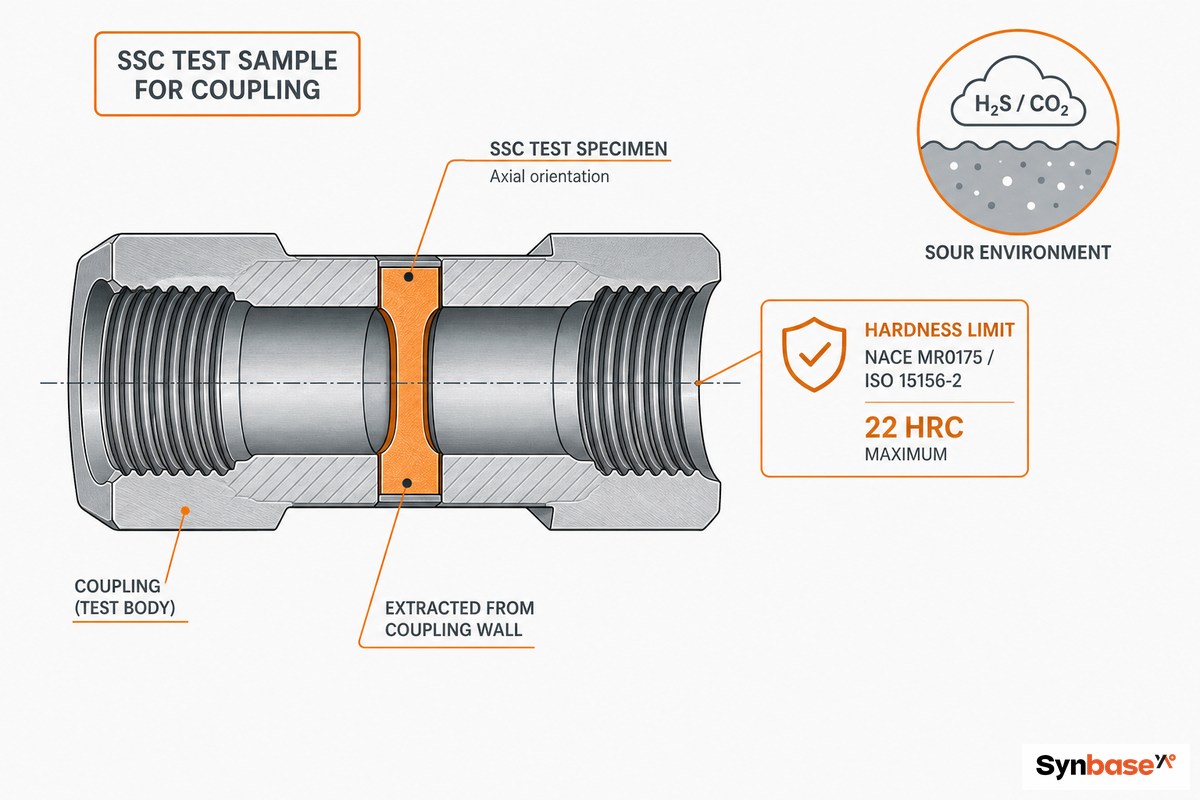

Sour Service and Corrosion-Resistant Coupling Grades

Wells with H₂S or CO₂ in the produced fluid need couplings qualified against sulfide stress cracking (SSC), and that qualification runs through NACE MR0175 / ISO 15156-2, not just a grade name on a data sheet.

NACE MR0175 / ISO 15156-2 Hardness Limits

The baseline hardness ceiling for carbon and low-alloy sour-service steel under NACE MR0175 / ISO 15156-2 is 22 HRC (roughly 250 HV10 or 237 HBW), though API 5CT carves out a documented, grade-specific exception allowing L80-1 up to 23 HRC. Both numbers are correct, they apply to different scopes, which is why Synbase-style spec sheets sometimes show 23 HRC where a general sour-service reference shows 22 HRC. A buyer comparing a mill’s SSC test report against a generic NACE summary should confirm which ceiling the mill is actually testing to.

A real, unanswered forum question captures the confusion well: a buyer ordering NACE MR0175-rated tubing pup joints asked whether the coupling supplied as made-up also has to independently satisfy NACE, or whether the mill’s pipe-body certification simply covers it. The honest answer is that it doesn’t automatically carry over, the coupling is a separate manufactured item under API 5CT, and its own heat needs its own SSC qualification test record, not just the pipe body’s.

a common, unresolved question on industry engineering forums

SSC Testing Requirements

SSC qualification itself runs through NACE TM0177 testing for L80-1, L80-13Cr, C90, T95 and C110, covering the parent metal, weld metal (where applicable) and heat-affected zone with a minimum of three hardness readings per test location. A grade stamp alone doesn’t prove sour-service compliance, the mill test report needs to show the actual SSC test result, not just the nominal grade. Peer-reviewed failure-analysis literature on cracked P110 tubing (Zhang et al., 2023, NIH-indexed) reinforces the same point from the field-failure side: grade selection interacts with real service conditions, not just a number on a spec sheet, which is exactly why the SSC test record matters more than the grade stamp alone.

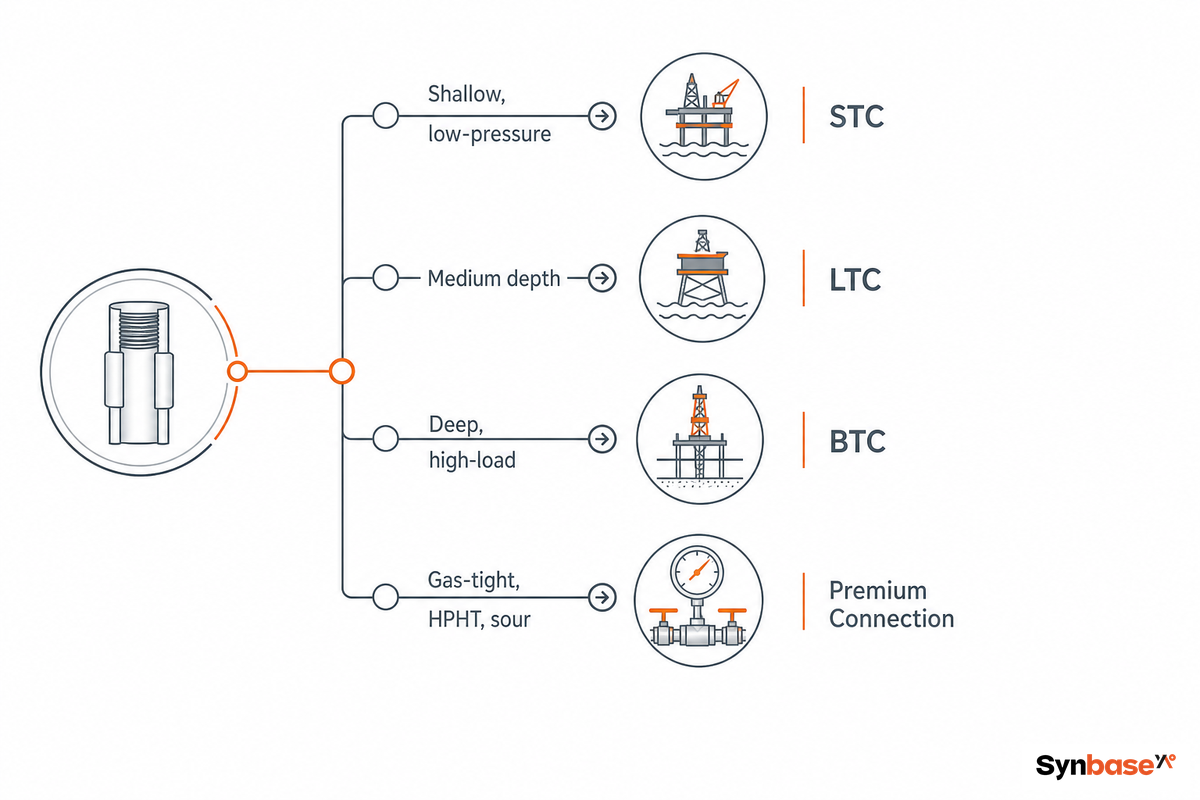

Choosing a Connection, API Standard Threads vs Premium Connections

The real selection question isn’t which thread looks strongest on paper, it’s which connection survives the specific combination of depth, load and fluid this well will see.

That fourth branch, roughly 103 MPa (15,000 psi) and above, is where a genuine, independently documented technical point matters: standard API buttress connections aren’t inherently gas-tight. Mill technical materials citing a US patent on high-gas-sealability makeup for API buttress connections (US 5,212,885, confirmed on file with the USPTO) describe API buttress as historically developed for liquid-service applications, with phosphatized BTC couplings failing gas-pressure testing in documented cases, gas-tightness in a standard connection come from thread compound and coupling surface treatment, not the buttress profile itself.

Separate technical literature on API connection sealability reaches the same conclusion from a different angle: API buttress is primarily suited to liquid service because it does not always provide reliable gas sealability performance. The higher the grade and the smaller the diameter, the harder the same connection is to seal.

cross-referenced from USPTO connection-sealability documentation and independent technical literature

This is exactly why HPHT and high-sour wells move to premium connections instead of pushing a standard thread past its rating. Premium connections solve the sealing problem with a metal-to-metal face seal and a positive torque shoulder, at higher cost and typically under manufacturer license. The major families buyers encounter:

• ✔ VAM Top and VAM FJL (Vallourec)
• ✔ Hydril CS and Hydril PH6 / TenarisHydril Wedge and Blue (Tenaris)
• ✔ Seal-Lock (Hunting)
• ✔ JFE Bear, Lion, Tiger and Fox family
• ✔ Licensed connections such as BGT (Baosteel) and TPCQ (TPCO)

None of these is a drop-in upgrade to an existing API coupling, premium connections require their own pipe-end machining and are specified before the string is ordered, not added after the fact.

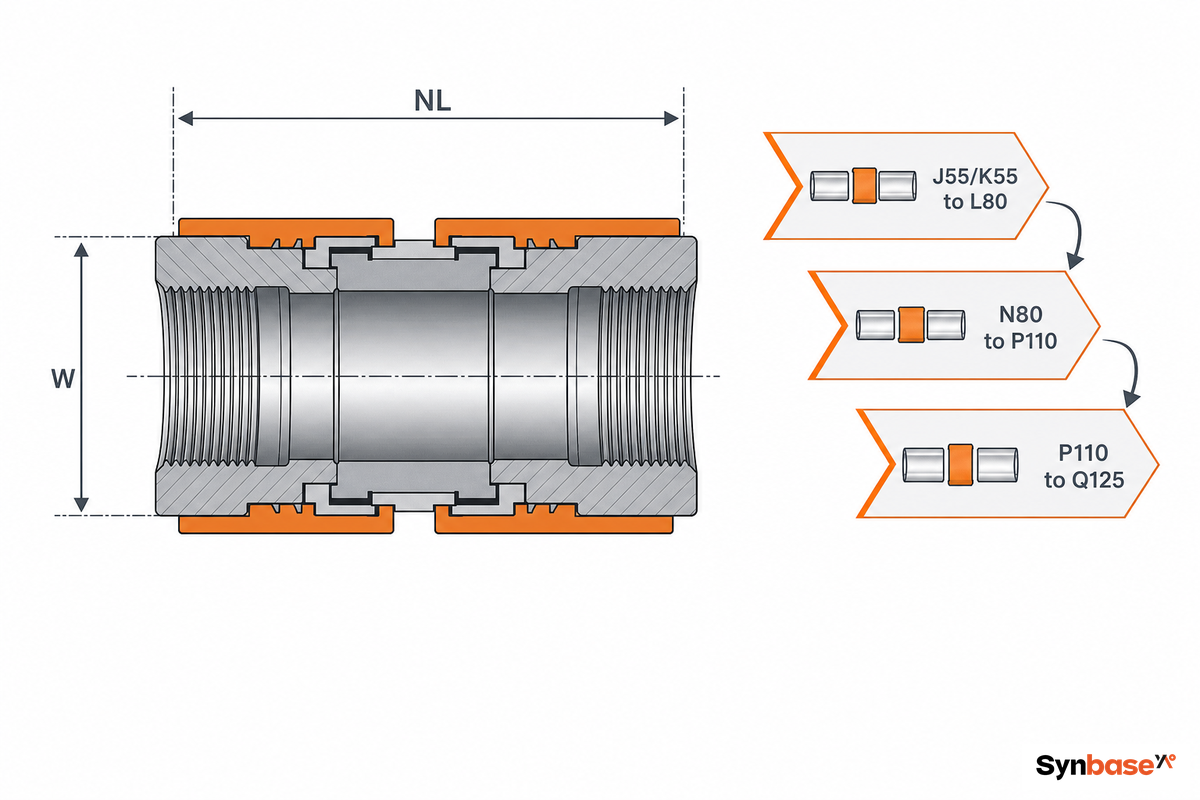

Coupling Dimensions, Tolerances & the Substitute-Grade Rule Most Buyers Miss

Two couplings of the same nominal size aren’t interchangeable across connection types, outside diameter (W) and make-up length (NL) both shift with thread family, from roughly 127 mm on 4-1/2″ casing up to 270 mm and beyond on 9-5/8″ casing, and getting either wrong either fails to make up or galls in a tight annulus.

OCTG coupling sizes are keyed to the pipe’s nominal outside diameter, not a single universal size chart, a supplier quoting a “5-inch coupling” without naming STC, LTC or BTC is leaving out the dimension that actually determines fit, as the table below shows. EUE coupling dimensions for tubing and API buttress coupling dimensions for casing follow the same logic: each thread family carries its own outside-diameter and make-up-length values in API 5CT, not a shared number. Reading an OCTG coupling diagram side-by-side with the pipe’s actual OD and grade stamp is the fastest way to catch a mismatch before it reaches the rig floor.

How to Verify a Coupling Is Genuine, Marking, MTR & Traceability

Coupling products vary in how rigorously that documentation trail is enforced from mill to mill, but a coupling missing its required marking is a documented reason for rejection under standard operator inspection practice, which makes knowing how to read that marking the first real counterfeit screen available on the receiving dock.

Manufacturer-Direct vs Distributor, What the Difference Actually Costs You

Two coupling lots can both carry an API stencil and still differ enormously in what the seller can actually prove. Vetting your OCTG coupling manufacturer or OCTG coupling supplier before the purchase order goes out matters more than comparing the OCTG coupling price line by line, the gap shows up in five places once you know to look.

The supply base itself is also actively consolidating, Hunting and Jindal’s 2024 partnership to expand premium OCTG supply in the US market is one example of established players moving to fill traceability and capacity gaps rather than leaving them to opaque resale channels. That shift make the five-criteria check above more relevant, not less: as sourcing options multiply, so does the range in what a seller can actually document.

What the difference actually cost also depends on a variable buyers frequently price too late: import duty exposure, and it isn’t a blanket penalty on any one sourcing route. US antidumping duty administrative reviews on OCTG have found weighted-average dumping margins as high as 26–45% for some producers, while separate reviews covering other origin countries and producers have cleared at or near 0% for the same review period, the rate is producer- and country-specific, not a fixed cost of importing. That’s exactly why the landed-cost comparison belongs in the same conversation as coupling grade and traceability, not a separate procurement step: a buyer who only checks the per-unit price and skips the current duty status can end up worse off than the “more expensive” domestic-stock option on the table. Checking a manufacturer’s standing on the API Monogram and APIQR directory is a useful parallel step, it’s the same audited-registration record a distributor’s paperwork can’t substitute for.

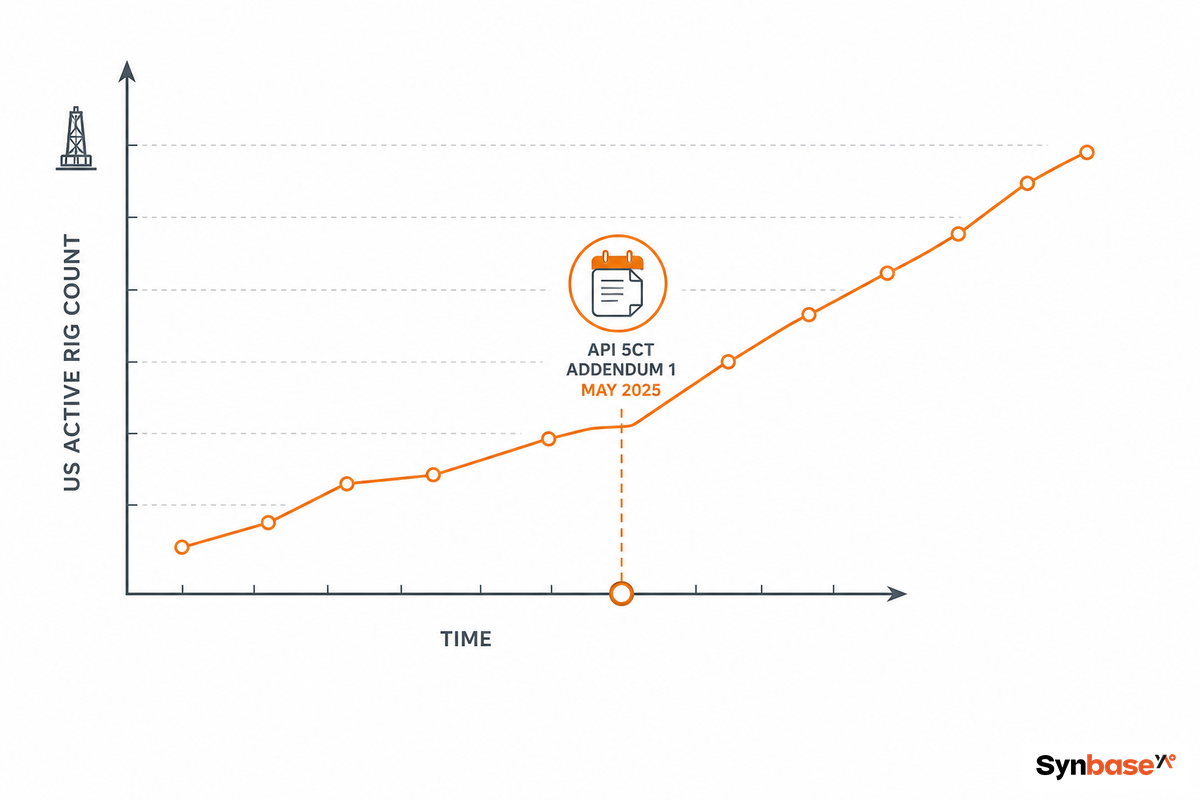

Industry Outlook, What’s Changing in OCTG Coupling Standards

The most concrete near-term change in this space isn’t a market number, it’s a standards update. API published an Addendum to the 11th edition of API Spec 5CT on May 20, 2025, strengthening the manufacturing requirements for steel casing, tubing and their couplings, building on the base 11th edition released in December 2023.

What This Means for Buyers

Most vendor content still cites only “11th edition” without noting the Addendum, a gap that creates real risk for buyers who assume “API 5CT compliant” hasn’t changed since May 2025. In practice, a mill test report more than 1 year old predates the Addendum entirely, and treating it as current is an easy mistake since the certificate wording doesn’t visibly change. The resolution: ask your supplier whether their process has incorporated Addendum 1, not just the base edition.

The US active rig count stood at 581 as of July 10, 2026, up 44 rigs year-over-year, per Baker Hughes’ live tracker, yet search interest in most generic OCTG coupling terms has actually softened over the same period. That disconnect is itself informative: for an established, well-understood product category, procurement increasingly runs through direct mill relationships and RFQ processes rather than open web research, which is exactly the buyer behavior this guide is written for.

On the technical side, long-lateral horizontal drilling is pushing interest toward connections with a smaller expanded-box outer diameter than a traditional coupling, reducing running friction in slim, extended-reach wells, a trend worth watching if your program includes long laterals. Looking further out, expanding CO₂ storage and underground gas storage projects are starting to raise separate well-integrity questions for casing and coupling design, though that remains an emerging, adjacent conversation rather than today’s core OCTG coupling procurement question. The same US federal regulator that publishes casing design methodology is the natural body to watch as CO₂ storage well-integrity rules mature, since casing and coupling design sit squarely inside its existing technical-assessment scope.

OCTG Coupling FAQ
